C Z Profile / Metal Steel Purlin Roll Forming Machine Mitsubishi Controller

Name: C Z Profile Metal Steel Purlin Roll Forming Machine Mitsubishi Controller
Brand: Bluesteel
Price: 1 USD

Brand Name : Bluesteel

Model Number : z purlin metal framing machine

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 set per month

Delivery Time : 30days

Packaging Details : Main machine is covered with air bubble,Small parts are in wooden box.All are fixed to container by steel rope.

Color : as your requirments

Roller Material : Cr 12

Cutter Material : Cr12

Cutter : Hydraulic Fixed Cutter or Nonstop Cutter

Controller : Mitsubishi

Serve : Engineers available to serve oversea for all life long

Decoiler : Hydraulic expand type

Material Thickness : 1.5-3mm

Contact Now

Used C Z Profile Changeable Size Metal Steel Purlin Cold Roll Forming Machine

Material thickness	1.5~3.0mm
Material yield stress	230~550 Mpa
Max. forming speed	8~25m/min
Roller material	45# steel with chrome treatment
Roller driven type	Chain transmission
Controller & operation	PLC & touch screen and button
Hydraulic system pressure	12 Mpa
Hydraulic station motor power	3 Kw
Main motor power	4~5.5Kw
Total power	7~8.5Kw
Total weight	About 6000~8000 Kgs

Machine feature:

We can make several dimensions in one machine.You can choose manul change size purlin machine.

Also ,you can choose auto change size machine.Just push a button ,it will change within seconds.

We also make c z purlion changeable machine.

Work folw:

Coil--Decoiler--guiding device-- roll forming --cutting-- run out table

Machine components:

Decoiler	1set (passive type and hydrualic expand one for choice)
Guiding	1set
Rollformer	1set(manul change and auto change for choice)
PLC	1set
Hydraulic station	1set
Cutter	1set
Run out table	1set or auto stacker
And so on

Machine overview:

We choose best machine parts to make sure mahine is durable and stable.Using big hydraulic station to make sure power supply.

Most common purlin sizes and types:

C Z purlin:

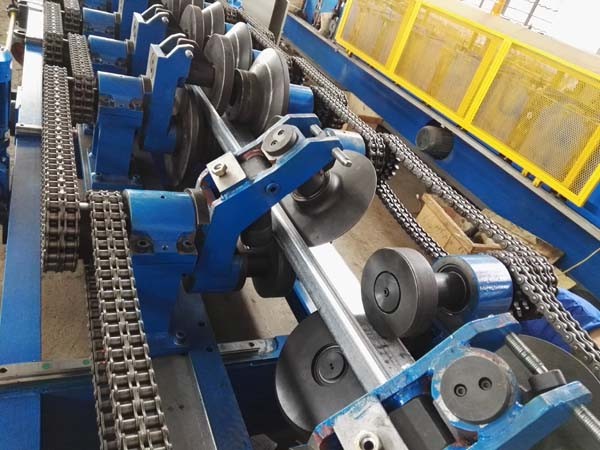

C Z Profile / Metal Steel Purlin Roll Forming Machine Mitsubishi Controller
